Reverse Osmosis (RO)

Purifying water through pressure-driven separation.

Brackish Water Reverese Osmosis Solutions

Efficient, Durable, and Low-Energy Reverse Osmosis Technologies for Brackish Water

Previous Next Brackish Water Reverse Osmosis

Your browser does not support the video tag.

Proven, reliable, high-performance water purification

Compared to traditional filtration technologies that rely on a screen or filter to remove particles, reverse osmosis (RO) is a pressure-driven separation process that employs a semipermeable membrane and the principles of crossflow filtration.

Reverse osmosis water treatment provides the finest level of filtration. The RO membrane acts as a barrier to all salts and inorganic molecules, as well as organic molecules with a molecular weight greater than approximately 100. It is therefore a highly effective process for removing contaminants such as:

Endotoxins/pyrogens.
Insecticides/pesticides.
Herbicides.
Antibiotics.
Nitrates.
Sugars.
Soluble salts.
Metal ions.

We provide the most widely used RO technology in the world — trusted globally by municipalities , industries , manufacturers, commercial markets, and families wanting clean, healthy water at home.

FilmTec™ Reverse Osmosis/Nanofiltration Membranes Technical Manual

This manual provides essential information on RO and NF technologies, water chemistry and pretreatment, system design and operation, cleaning and sanitization, and troubleshooting tips.

Dry Seawater RO Elements Brochure

Transition to dry-tested elements for a wide-range of benefits such as longer storage time and improved sustainability footprint.

Subzero Operating Conditions Are No Match for FilmTec™ Seawater Reverse Osmosis Elements

Read how an Antarctic research station’s seawater RO plants are exposed to temperatures as low as -1.5°C, yet our RO elements show no damage.

FilmTec™ portfolio Discover the industry-leading FilmTec™ portfolio.Periodic table See how our solutions relate to each chemical element.FAQs Get quick answers to technical questions in our resource center.Reverse Osmosis (RO) details

A closer look

See more details about reverse osmosis water treatment. What Is RO? Crossflow Filtration RO Membrane Performance

Overcoming osmotic pressure

In ordinary osmosis, when a semipermeable membrane separates solutions of differing solute concentrations, the lower-concentration solution flows into the higher-concentration solution in attempt to reach equilibrium: an equal degree of solute concentration on both sides of the membrane. As the amount of solution on the higher-concentration side increases, pressure on that water column rises until it is high enough to hinder the flow of the lower-concentration solution across the membrane. This is the action of osmotic pressure.

In reverse osmosis (RO), pressure that exceeds a system’s osmotic pressure is applied to that system. The pressure forces the higher-concentration solution back across the semipermeable membrane, leaving solutes that are blocked by the semipermeable membrane behind.

Typically, reverse osmosis water treatment results in a rejection of dissolved salts that is 95 – 99 percent or greater, depending on membrane type, feed composition, temperature, and system design.

Reverse osmosis water treatment can provide finer filtration than either nanofiltration or ultrafiltration. Using RO as a pretreatment process for ion exchange (IX) can substantially reduce the operating costs and regeneration frequency of the IX system.

Typical applications include:

Purification of home drinking water.
Desalination of seawater or brackish water to produce drinking water.
Wastewater recovery.
Food and beverage processing.*
Biomedical separation.
Industrial process water treatment.

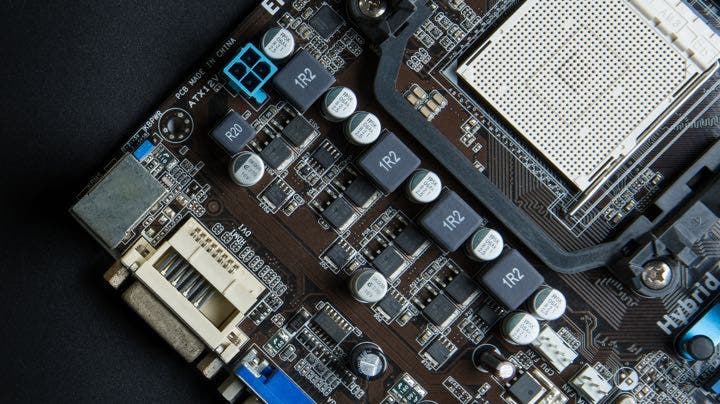

Reverse osmosis water treatment is also often used to produce ultrapure water for the semiconductor industry , in boiler water treatment for the power industry, and for applications in the health care and bioprocessing industry.

Maintaining flow and desired results

Precipitate salts and other impurities that a pressurized flow of feedwater forces against a semipermeable RO membrane can clog or “foul” that membrane. This, in turn, can decrease the performance of a reverse osmosis water treatment system overall.

To significantly reduce the rate of membrane fouling, RO elements use crossflow filtration. This process forces lower-concentration water through the RO membrane, while the separated flow of higher-concentration water moves across the surface of the membrane, carrying away the rejected salts and impurities.

In essence, crossflow filtration happens like this: A high-pressure pump continuously pumps feedwater into the element of the reverse osmosis water treatment system. The pressure forces some water to cross the semipermeable RO membrane, resulting in a low-saline or purified product called permeate on one side, and a high-saline or concentrated brine, called concentrate or reject, on the other. A concentrate valve controls the percentage of feedwater that goes to the concentrate stream and the permeate. In the system, the low-saline or purified permeate — the feedwater that has passed through the membrane — remains isolated from the concentrate flow. The concentrate stream removes the concentrate that cannot permeate the membrane and sweeps them out of the system.

Reverse osmosis systems can thus:

Produce purified water (or permeate) from a feed stream or brine.
Remove a concentrate (or concentrated brine or reject) from a feed stream.

Depending on the need and application, either the permeate or the concentrate may be the desired product.

Reverse osmosis water treatment can also be used to selectively separate certain ions and molecules, although to a lesser degree than can ion exchange systems.

Influencing factors

RO membrane performance (improvement or degradation) is affected by a number of different factors, including aspects of the feedwater, such as:

Temperature.
pH balance.
Salt concentration.

Normalization calculation tools can help distinguish between the normal, predictable performance changes caused by factors such as those listed above, and deteriorating performance caused by membrane fouling or similar issues.

Other factors influencing RO membrane performance include:

Operations parameters such as system recovery.
Concentration polarization.

Find more details in our tech fact sheet: FILMTEC™ Membranes: Factors Affecting RO Membrane Performance

What Is RO?+

Overcoming osmotic pressure

In ordinary osmosis, when a semipermeable membrane separates solutions of differing solute concentrations, the lower-concentration solution flows into the higher-concentration solution in attempt to reach equilibrium: an equal degree of solute concentration on both sides of the membrane. As the amount of solution on the higher-concentration side increases, pressure on that water column rises until it is high enough to hinder the flow of the lower-concentration solution across the membrane. This is the action of osmotic pressure.

In reverse osmosis (RO), pressure that exceeds a system’s osmotic pressure is applied to that system. The pressure forces the higher-concentration solution back across the semipermeable membrane, leaving solutes that are blocked by the semipermeable membrane behind.

Typically, reverse osmosis water treatment results in a rejection of dissolved salts that is 95 – 99 percent or greater, depending on membrane type, feed composition, temperature, and system design.

Reverse osmosis water treatment can provide finer filtration than either nanofiltration or ultrafiltration. Using RO as a pretreatment process for ion exchange (IX) can substantially reduce the operating costs and regeneration frequency of the IX system.

Typical applications include:
- Purification of home drinking water.
- Desalination of seawater or brackish water to produce drinking water.
- Wastewater recovery.
- Food and beverage processing.*
- Biomedical separation.
- Industrial process water treatment.
Reverse osmosis water treatment is also often used to produce ultrapure water for the semiconductor industry , in boiler water treatment for the power industry, and for applications in the health care and bioprocessing industry.
Crossflow Filtration+

Maintaining flow and desired results

Precipitate salts and other impurities that a pressurized flow of feedwater forces against a semipermeable RO membrane can clog or “foul” that membrane. This, in turn, can decrease the performance of a reverse osmosis water treatment system overall.

To significantly reduce the rate of membrane fouling, RO elements use crossflow filtration. This process forces lower-concentration water through the RO membrane, while the separated flow of higher-concentration water moves across the surface of the membrane, carrying away the rejected salts and impurities.

In essence, crossflow filtration happens like this: A high-pressure pump continuously pumps feedwater into the element of the reverse osmosis water treatment system. The pressure forces some water to cross the semipermeable RO membrane, resulting in a low-saline or purified product called permeate on one side, and a high-saline or concentrated brine, called concentrate or reject, on the other. A concentrate valve controls the percentage of feedwater that goes to the concentrate stream and the permeate. In the system, the low-saline or purified permeate — the feedwater that has passed through the membrane — remains isolated from the concentrate flow. The concentrate stream removes the concentrate that cannot permeate the membrane and sweeps them out of the system.

Reverse osmosis systems can thus:
- Produce purified water (or permeate) from a feed stream or brine.
- Remove a concentrate (or concentrated brine or reject) from a feed stream.
Depending on the need and application, either the permeate or the concentrate may be the desired product.

Reverse osmosis water treatment can also be used to selectively separate certain ions and molecules, although to a lesser degree than can ion exchange systems.
RO Membrane Performance+

Influencing factors

RO membrane performance (improvement or degradation) is affected by a number of different factors, including aspects of the feedwater, such as:
- Temperature.
- pH balance.
- Salt concentration.
Normalization calculation tools can help distinguish between the normal, predictable performance changes caused by factors such as those listed above, and deteriorating performance caused by membrane fouling or similar issues.

Other factors influencing RO membrane performance include:
- Operations parameters such as system recovery.
- Concentration polarization.
Find more details in our tech fact sheet: FILMTEC™ Membranes: Factors Affecting RO Membrane Performance

Our approach to reverse osmosis water treatment

A critical component of the FilmTec™ element family of products, DuPont Water Solutions reverse osmosis water treatment technology supports high-quality, top-performing water purification in consumer, commercial, municipal, and industrial water treatment systems across the globe.

Our FilmTec™ RO elements house spiral-wound, thin-film composite polyamide membranes. Typically, a spiral-wound configuration means lower replacement costs, simpler plumbing systems, easier maintenance, and greater design freedom than other configurations, such as tubular, plate-and-frame, and hollow-fiber module designs. Our RO elements are manufactured using the most highly advanced, automated manufacturing technology in the industry, which results in maximum uniformity and minimized element-to-element differences. Our rigorous, extensive quality testing ensures that FilmTec™ elements meet our high fabrication standard.

Compared to cellulose membranes, our FilmTec™ elements for reverse osmosis water treatment can:

Produce two to three times more high-quality water.
Screen out a higher percentage of dissolved solids.
Reject a higher percentage of undesirable dissolved solids, including chloride, lead, and nitrates.

Our high-performance FilmTec™ RO elements for commercial markets — such as for car washes, hotels and resorts, and hospitals and other institutions — as well as municipal and industrial markets, can:

Remove up to 99 percent of impurities from water.
Reduce operating costs.
Lower energy usage.
Provide longer life due to antifouling and high cleanability.

Find reverse osmosis products

View a list of our industry-leading reverse osmosis products.

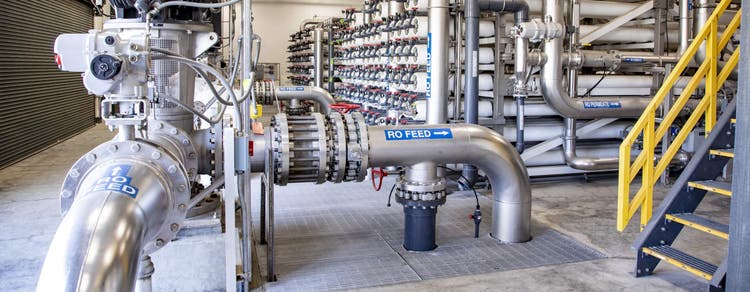

Reverse Osmosis Products Reverse Osmosis (or RO) train in Jurupa Valley

Our technologies provide premium solutions for a broad range of industries. Learn more about the industries that depend on reverse osmosis technology.

Underwater view of three smiling children with swimming goggles playing and blowing bubbles in a swimming pool Commercial

We help offices, schools, hospitals, hotels, and universities enhance their facilities with our water-treatment solutions.

Learn more Young boy sitting at a table for his breakfast food and beverage, sipping a glass of orange juice Food & Beverage

We help everyone’s favorite foods and beverages taste better with advanced separations of sugars, dairy streams, and other nutritional ingredients.

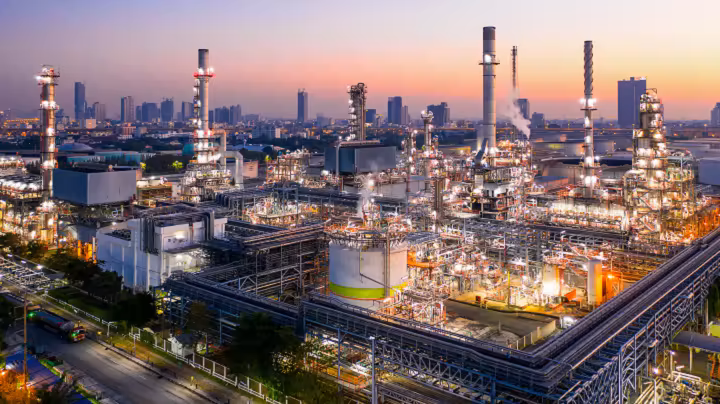

Learn more Industrial Utility Water plant at dusk Industrial Utility Water
