WAVE Water Treatment Design Software
Learn how to download WAVE free
Upgrade to WAVE PRO
Benefit from integrated software for water-treatment plant design
Treating water often requires more than one technology to achieve the desired quality. Most software for water-treatment plant design does not allow you to optimize multiple-technology systems, requiring separate software and more of your time for setup and management.

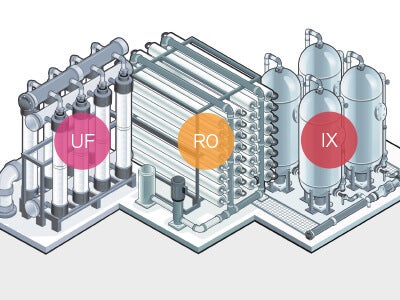

Our Water Application Value Engine (WAVE) is the industry’s first fully integrated free modeling software program to integrate our leading technologies — ultrafiltration (UF), reverse osmosis (RO), ion exchange (IX), — into one comprehensive tool. Using a common interface, it simplifies the design process and ultimately helps reduce the time needed to manage your water-treatment system.
With the new version of WAVE 1.85.29, you’ll have the convenience of:
- One intuitive interface for UF, RO, and IX technologies, compatible with Microsoft Windows.
- Expert modeling tool.
- Harmonized data for all products and processes.
- Four language options: English, Chinese, Spanish, and Portuguese.
-
Integrated software features
In a truly integrated software, modifications made to any operation automatically propagate throughout the system design, whereas other software requires modifications to be manually entered into the feed of the downstream operation.
WAVE is an integrated expert modeling software for water-treatment plant design, including wastewater-treatment plant design, offering:
- Flexible design using three technologies, with multiple-unit operation combinations, plus the option to specify system-feed or net-product flow rate.
- A powerful calculation engine with the capacity to run complex designs at high levels of accuracy.
- Improved water-equilibrium calculations and interface.
- True mass-balance volumes and flows that reflect changes in density due to temperature, water composition, and water compressibility.
- Consistent hydraulic constraints and regeneration parameters, which reflect best practices and state-of-the-art product performance and application.
- Default values for most parameters, allowing you (or your designer) to create a design quickly.
- The capability to introduce project-specific parameters to increase the accuracy of operating-expense calculations.
-
Advanced features for UF, RO, and IX technologies
WAVE software for water-treatment plant design includes advanced features for UF, RO, and IX, and technologies to maximize multi-technology design efficiency.
Ultrafiltration (UF) advanced features include:
- WAVE allows to design with mini-CIP chemical cleaning protocol. User can choose three options: “CEB only”, “mini-CIP only” and “CEB and mini-CIP."
- In ultrafiltration, backwash options have been upgraded to consider the required steps for UXA products.
- The latest UF products, including IntegraFlux™ and IntegraPac™ UF Modules with XP Fiber.
- Updated design guidelines and pressure rating curves.
- Membrane integrity testing capabilities.
- Advanced clean-in-place (CIP) protocols and use of RO concentrate for cleaning.
- Inputs for advanced design: the ability to specify the pH of chemical solutions used in the maintenance and cleaning protocols, transmembrane pressure (TMP) slopes for BW/CEB/CIP, and design for constant flux vs. constant output.
Reverse Osmosis (RO) advanced features include:
-
The reverse osmosis products database has been upgraded to include:
- FilmTec™ EXLE-440(i) element
- FilmTec™ CR100(i) element
- FilmTec™ BWRO PRO-2540 element
- FilmTec™ TW30 PRO-2540 element
- FilmTec™ XLE PRO-2540 element
- FilmTec™ Fortilife™ CR50 reverse osmosis element: the introductory product to the well-known Fortilife™ Family for selective regions. It is designed for a long lifetime and provides reliable performance in fouling-prone waters.
- FilmTec™ Fortilife™ CR200 reverse osmosis element, as the premium product to Fortilife™ Family launched in Greater China and coming soon to other regions, is an expertly designed contaminant resistant element for treating and recycling the combined challenge of biological and organic fouling prone waters.
- FilmTec™ NF270-440 enables end-users to reduce CAPEX of NF systems for municipal drinking water projects by offering up to 10% more active membrane area. It also delivers more than 10% energy saving and improvement on biofouling resistance.
-
Users can now design systems with concentrate stream recycle simultaneously from Pass 2 to Pass 1 and 2.
-
The latest RO products database with new calculation improvements and products, including FilmTec™ Fortilife™.
-
Improved internally staged design (ISD) capability — each element in a pressure vessel can now be uniquely defined.
-
Split permeate available with ISD.
-
Bypass, pass, and stage level concentrate recycle loops.
-
A new system-level hydraulic-flow calculator.
-
Batch modeling with the possibility of simultaneous-batch-case creation.
-
Design warnings by element position.
-
Pressure-drop reporting.
Ion Exchange (IX) advanced features include:
- Ion exchange reports have been improved and optimized in order to better reflect customer needs.
- Harmonized data for all processes and resins.
- Ability to model multiple IX processes, including softening, dealkalinization, demineralization, RO/IX polishing, and condensate polishing.
- Multiple IX regeneration schemes, including concurrent, water, or air-blocked packed beds, AmberPack™ IX systems, Upcore™ IX systems, and internal and external mixed beds.
-
Technical requirements for WAVE software
Software requirements:
- Windows Installer 3.1 or higher
- Microsoft .NET Framework 4.0 Client
- SQL Server Compact Edition 3.5 or higher
Note: If one or more of the above requirements is absent, it will be installed along with WAVE installation setup (Setup.exe).
Hardware requirements:
-
Minimum disk space:
- 120 MB (for WAVE application)
- 50 MB (.Net Framework Client Profile)
- 3MB (for SQL Server CE)
-
Operating system (one of the following):
- Windows XP Service Pack 3
- Windows Server 2008
- Windows Vista
- Windows 7 Ultimate, Professional, Enterprise, Home Premium, or Home Basic
- Windows 10
-
Service and support
WAVE software for water-treatment plant design comes with a fully detailed user manual. This manual is easily accessible within the software through the “Quick Help” button located in the top right of the software’s interface.
You can also connect with your DuPont Water Solutions representative, or contact us, with any questions regarding the software or how it works.
Download the free WAVE Design Software
Register for Resource Center Premium or sign-in to access our premium content including the ability to download WAVE design software. Note: after registering or signing-in, visit the "My Profile" section and ensure the application of "Resource Center Premium" is selected to have access to WAVE. Then, below, select the option to download WAVE for the first time or update to the latest version of WAVE.
Download WAVE SoftwareUpdate WAVE Software View WAVE Webinar Series
FT-Norm PRO (FilmTec’s Normalization of Membrane Systems)
After you have implemented the WAVE software for water-treatment plant design, it’s important that you protect your investment by monitoring the performance of the plant and determining when it’s time for a preventive cleaning cycle, which can enable extended membrane life.
Variations in feedwater temperature, salinity, or pump pressure can influence the apparent productivity and rejection of a membrane system, making it less obvious when a real change in membrane performance has occurred. FT-Norm PRO takes away the guesswork by compensating for these variations.
Access FT-Norm PRO WAVE PRO
Discover WAVE PRO
WAVE PRO is a powerful online modeling tool expertly developed by our technical team. With its user-friendly interface, WAVE PRO guides you through the design process, while its robust calculation engine ensures that your modeling is efficient and precise.
With WAVE PRO, you have the convenience of:
- Integrate water industry leading technologies: UF, IX, RO, and NF
- Run complex designs with high precision
- Access the tool securely from any device using single sign-on
- Secure report sharing with your organization
- Benefit from automatic updates that ensure WAVE PRO is always current
- Transition smoothly from WAVE to WAVE PRO with backward compatibility.
- Experience cross-platform compatibility with Microsoft Windows and iOS.
